Adopted integrated die-casting aluminum design, High strength, high precision, strong durability, excellent environmental compatibility, Stable and powerful performance,transparent and bright color display, high image quality and fidelity.

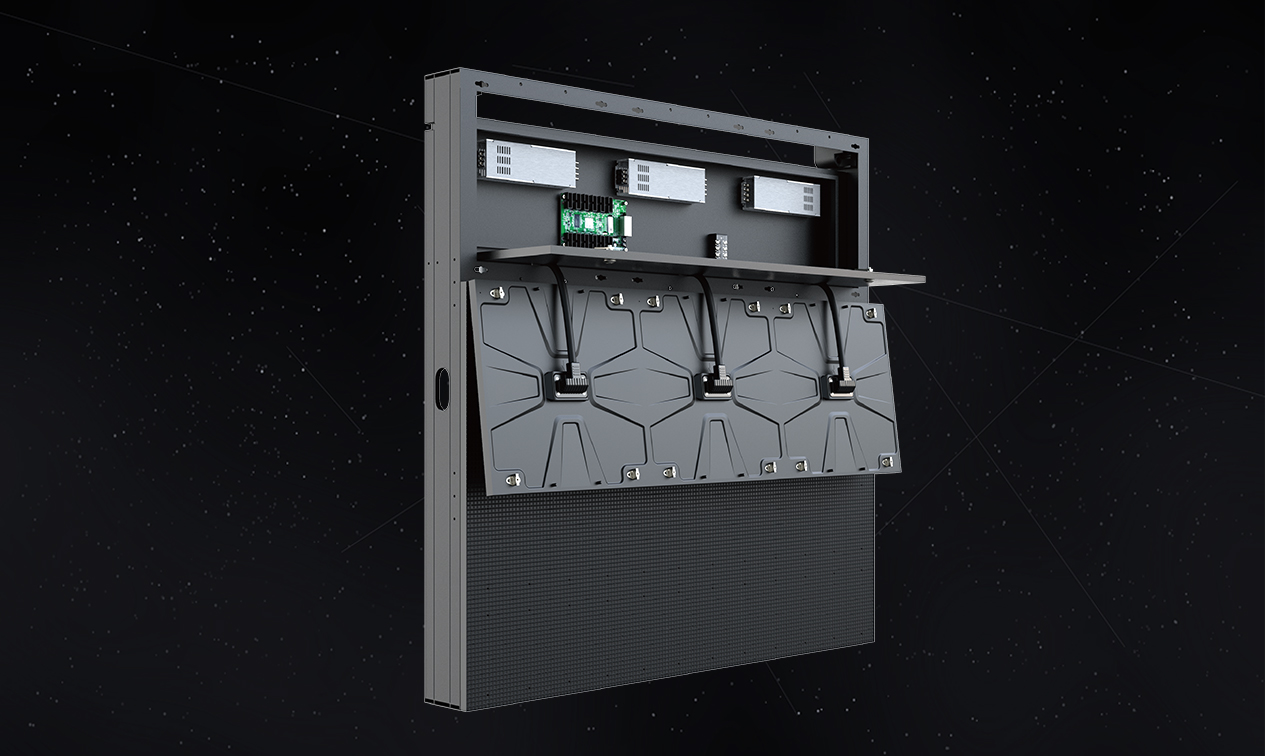

No complicated work steps are required, just remove the module covering the power box, and then the power box can be opened for maintenance work.
Unabhängiger Steuerkasten mit integriertem Netzteil und Signalverarbeitungsmodul, leicht und kompakt, schnelle Wartung.
IP67 design,suitable for various working environments:dusty roadside, wet seashore etc., ideal outdoor product.

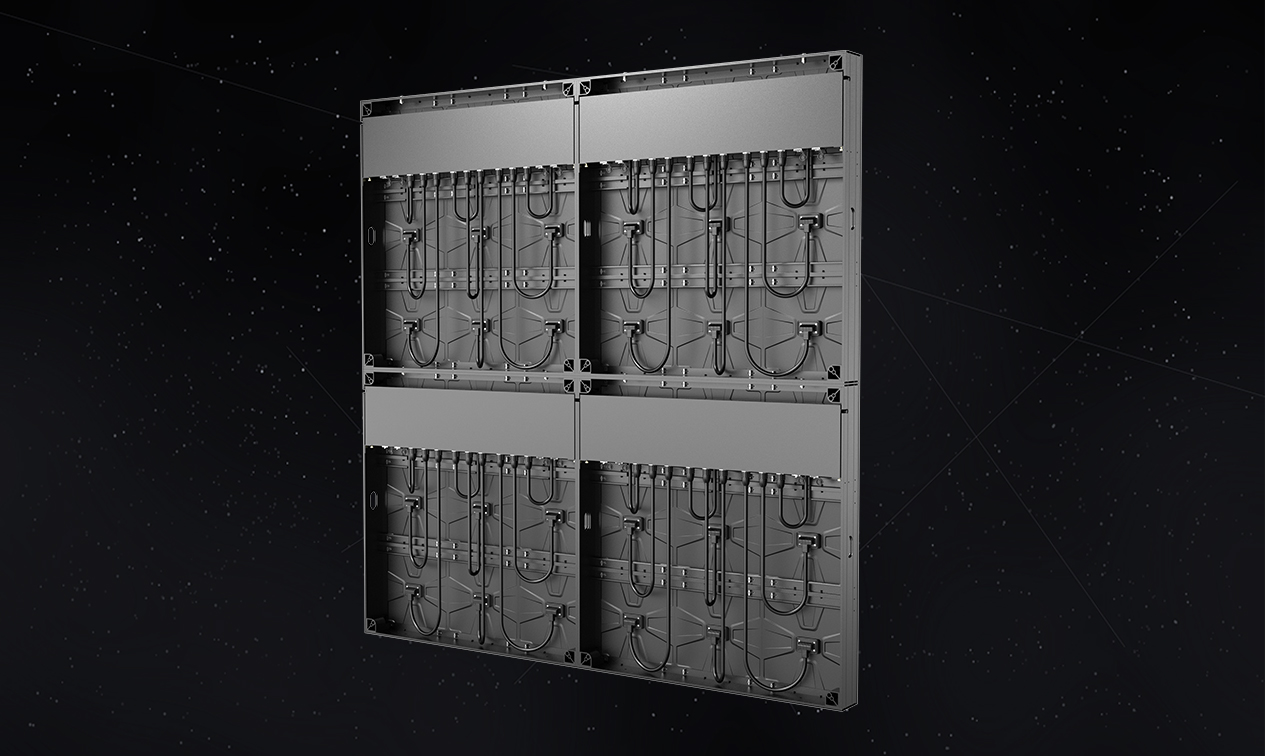

Aluminum alloy frame is processed by CNC, flatness can be controlled within 0.5mm, flatness is far better than the traditional fabricate metal cabinet.
Item | P6.67 | P8 | P10 |
Pixel Pitch | 6.667mm | 8mm | 10mm |
LED Type | SMD2727 | SMD2727 | SMD2727 |
Module Resolution | 48dots × 48dots | 40dots × 40dots | 32dots × 32dots |
Driving Mode | 1/4scan | 1/4scan | 1/2scan |
Module Pixels | 2,304dots | 1,600dots | 1,024dots |
Module Size | 320mm × 320mm | 320mm × 320mm | 320mm × 320mm |
Cabinet Size | 960mm × 960mm × 100mm | 960mm × 960mm × 100mm | 960mm × 960mm × 100mm |
Cabinet Resolution | 144dots × 144dots | 120dots × 120dots | 96dots × 96dots |
Pixel Density | 22,500 dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
Best Viewing Distance | ≥6.67m | ≥8m | ≥10m |
Brightness | 6,500nits or 10,000nits | 6,000nits or 9,000nits | 6,000nits or 10,000nits |
IP Grade | IP67 | ||
Refresh Rate | 1,920Hz~3,840Hzz(depends on IC driver solution) | ||
Gray Scale | 14bits~22bits(depends on IC driver and controller solution ) | ||
Viewing Angle | H:110° / V:110° | ||
Maximum Power Consumption | 800W/㎡ | ||
Average Power Consumption | 265W/㎡ | ||
Input Voltage | AC220V ~ AC110V @ 50Hz / 60Hz | ||
Operating Temperature | ﹣20℃~65℃ | ||
Operating Humidity | 10%~90% | ||
Cabinet Material | Aluminum profile | ||
Cabinet Weight | 30kg/panel | ||
Operating System | Windows (Win7, Win10, etc.) | ||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
