LUM outdoor series display screen,high-grade aluminum alloy frame,high precision, concise modeling, mature industrial deign structure, easy to transport,installation safety, stability, durability, front and back maintenance.
Dual Power/Signal Ports, versteckter Entwurf, Unterstützung links/rechts Module austauschbare Verbindung. 45°angle Design Modul.
Modul 45° Winkeldesign, einfach mit verschiedenen rechtwinkligen Projekten umzugehen.
The module is equipped with aluminum alloy heat sink, which has high thermal conductivity and good heat dissipation effect, ensuring the stable performance of the screen.
High airtight insulating rubber ring, dustproof, waterproof, moistureproof, excellent airtight performance.
Ohne Umwelteinschränkungen und Unterstützung der Demontage von Modulen vorne und hinten zur Wartung.
Das ganze Panel nimmt Nabenverbindung zwischen Modul und Empfänger für Signal und Leistung an.

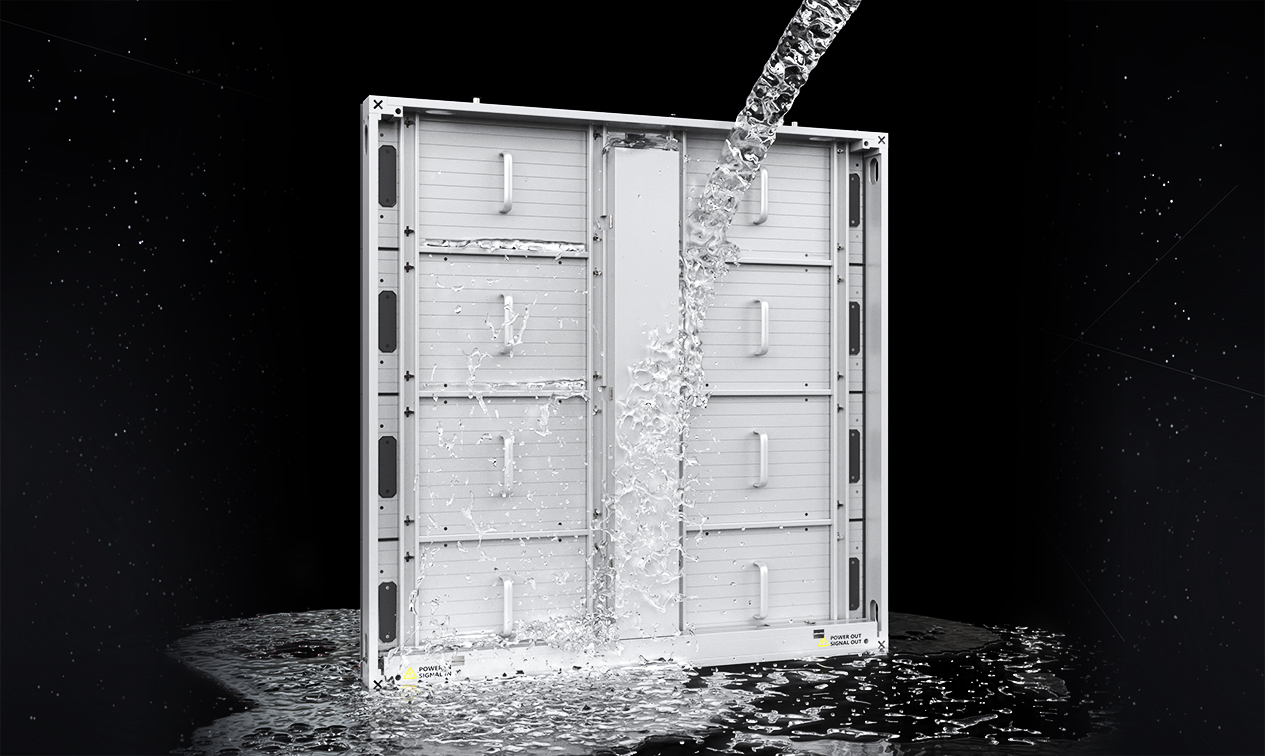

Voll versiegeltes Modul, seitlich wasserdichtes Design, die Schutzklasse des Moduls erreicht IP66, versiegeltes Netzteildesign. Staubdicht, feuchtigkeitsdicht, korrosionsbeständig, perfekte Lösung für die drei Beweisprobleme des Anzeigebildschirms.
Item | P3.91 | P4.81 | P6.25 | P7.8 | P10.4 |
Pixel Pitch | 3.906mm | 4.807mm | 6.25mm | 7.8125mm | 10.417mm |
LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
Module Resolution | 128dots × 64dots | 104dots × 52dots | 80dots × 40dots | 64dots × 32dots | 48dots x 24dots |
Driving Mode | 1/16scan or 1/8scan | 1/13scan or 1/7scan | 1/5scan | 1/4scan | 1/2scan |
Module Pixels | 8,192dots | 5,408dots | 3,200dots | 2,048dots | 1,152dots |
Module Size | 500mm × 250mm | ||||

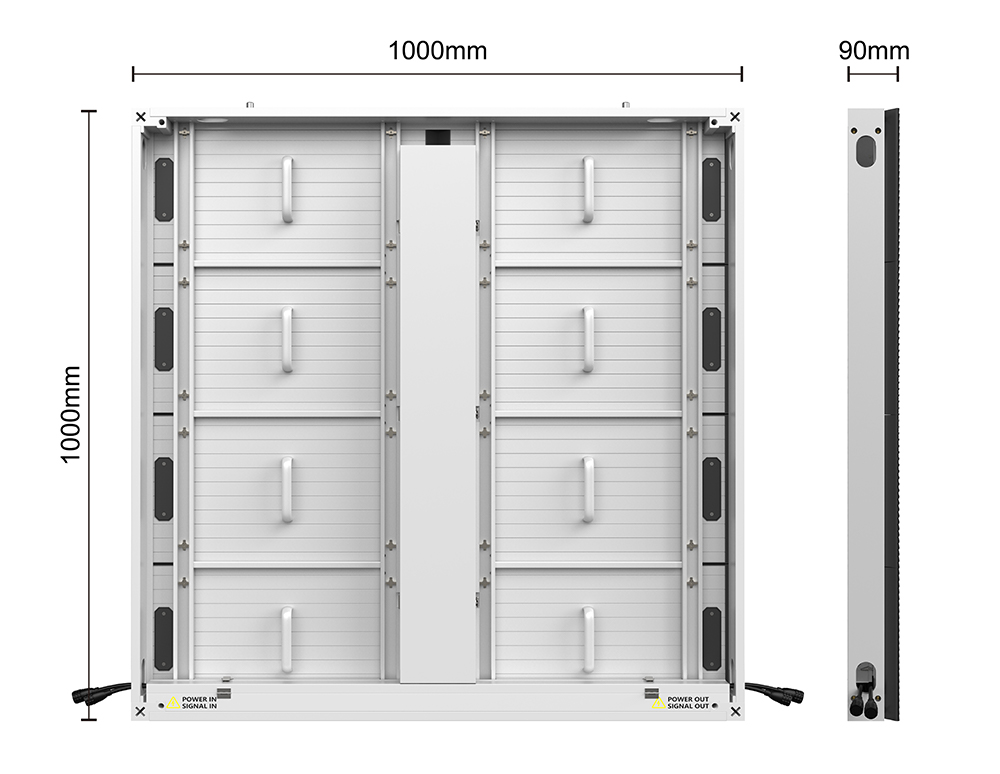

Cabinet Size | 1000mm × 1000mm or 1000mm × 500mm | ||||
Cabinet Resolution (1000mm × 1000mm) | 256dots × 256dots | 208dots × 208dots | 160dots × 160dots | 128dots × 128dots | 96dots × 96dots |
Pixel Density | 65,536dots/㎡ | 43,264dots/㎡ | 25,600dots/㎡ | 16,384dots/㎡ | 9,216dots/㎡ |
Best Viewing Distance | ≥3.9 m | ≥4.8 m | ≥6.2 m | ≥7.8 m | ≥10 m |
Brightness | 4500nits or 6000nits | 6500nits or 9000nits | 6500nits or 9500nits | 6500nits or 10000nits | |
IP Grade | IP65 | ||||
Refresh Rate | 1,920Hz~3,840Hz(depends on IC driver solution) | ||||
Gray Scale | 14bits~22bits(depends on IC driver and controller solution ) | ||||
Viewing Angle | H:110° / V:110° | ||||
Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 720W/㎡ | 650W/㎡ | |
Average Power Consumption | 265W/㎡ | 265W/㎡ | 240W/㎡ | 220W/㎡ | |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | ||||
Operating Temperature | ﹣20℃~50℃ | ||||
Operating Humidity | 10%~90% | ||||
Cabinet Material | Aluminum profile | ||||
Cabinet Weight | 30kg/m2 | ||||
Operating System | Windows (Win7, Win10, etc.) | ||||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
