Craftsman quality, trusted choice
1.Diversified product line
2.Quick installation
3.Lightweight and stylish, alloy quality

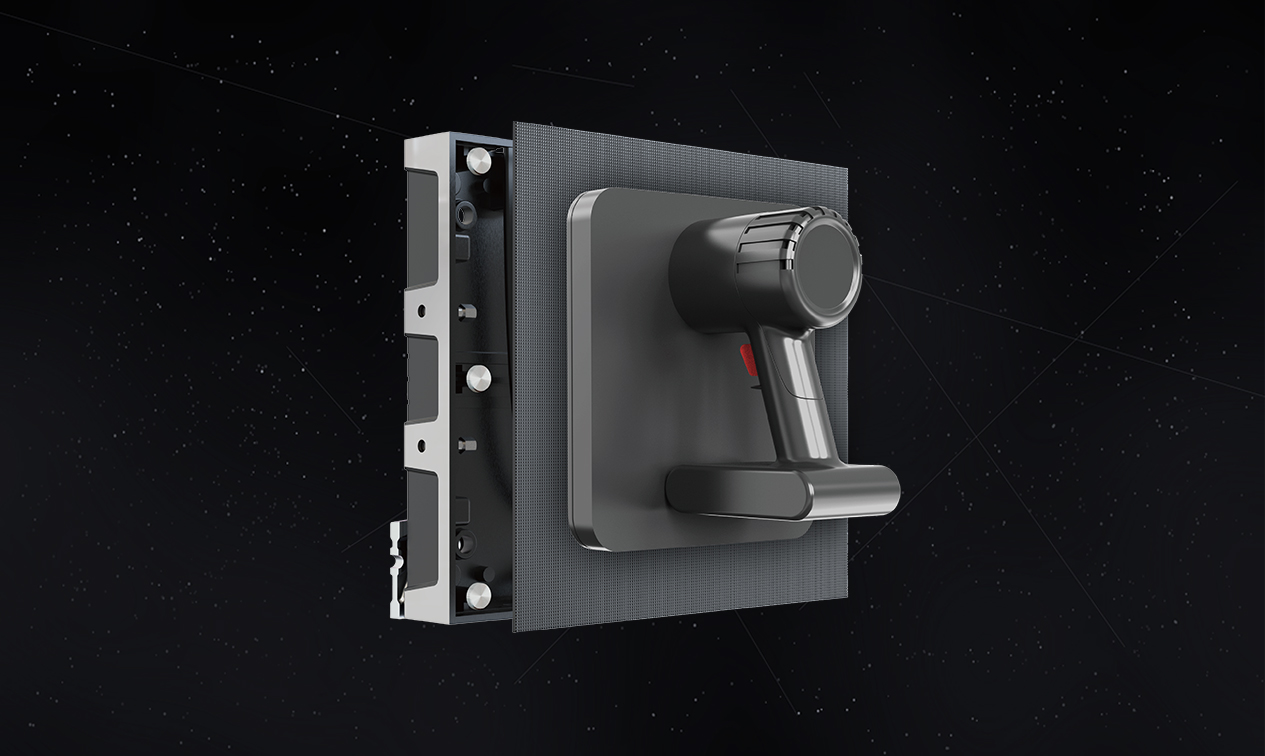

Schnelles magnetisches Adsorptionsfrontmaintedesign, einfache Installation und schnelle Wartung.

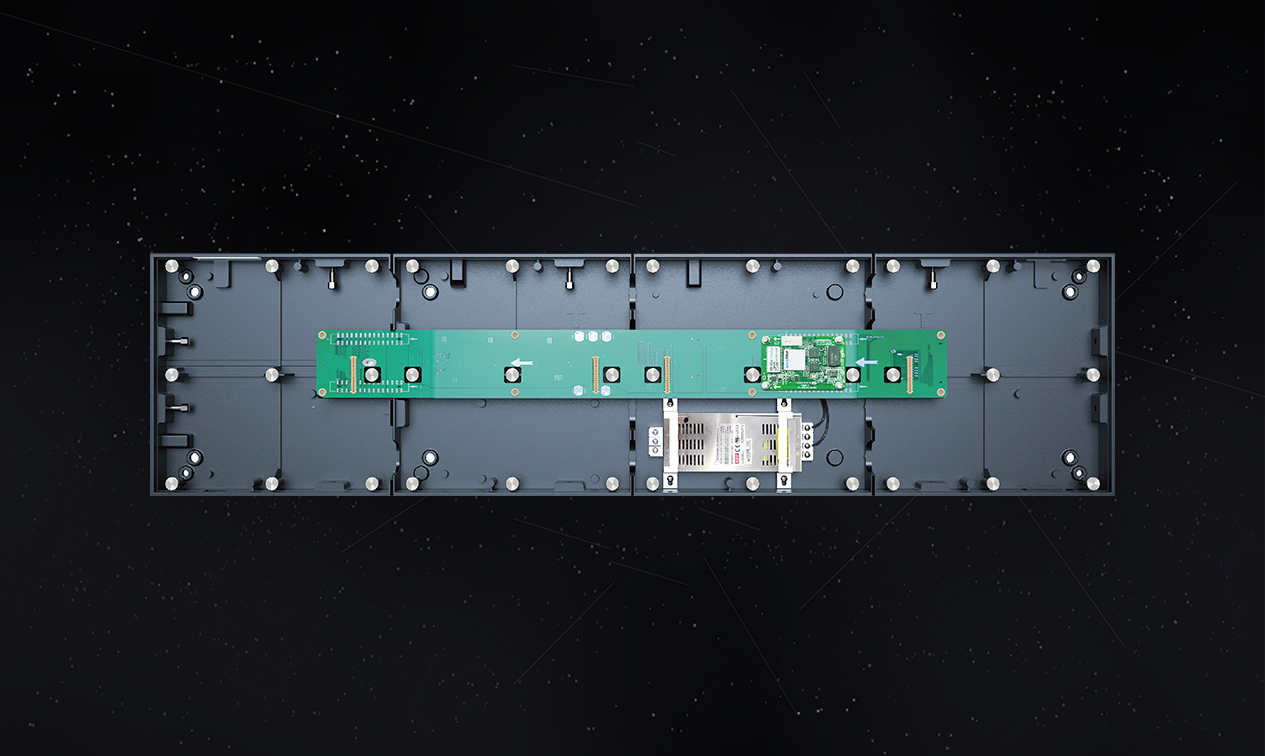

Hard-connected inside the cabinet, concisely cable wiring,less failure, easy installation and maintenance.

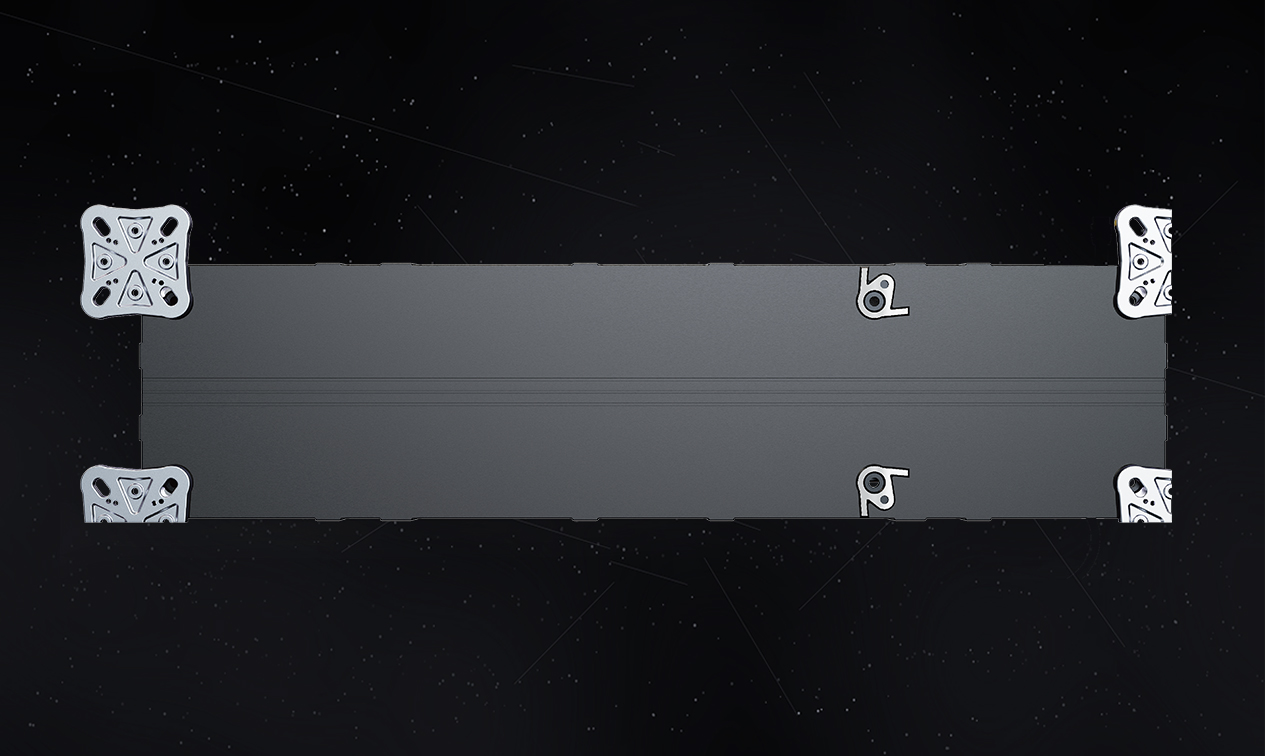

Punkt zu Punkt hochpräzise Aluminiumlegierung Druckguss Verbindungsplatte, der Bildschirm wird mit höherer Ebenheit und Stabilität installiert.
Die cast aluminum design, higher precision, better flatness, perfect overall effect.

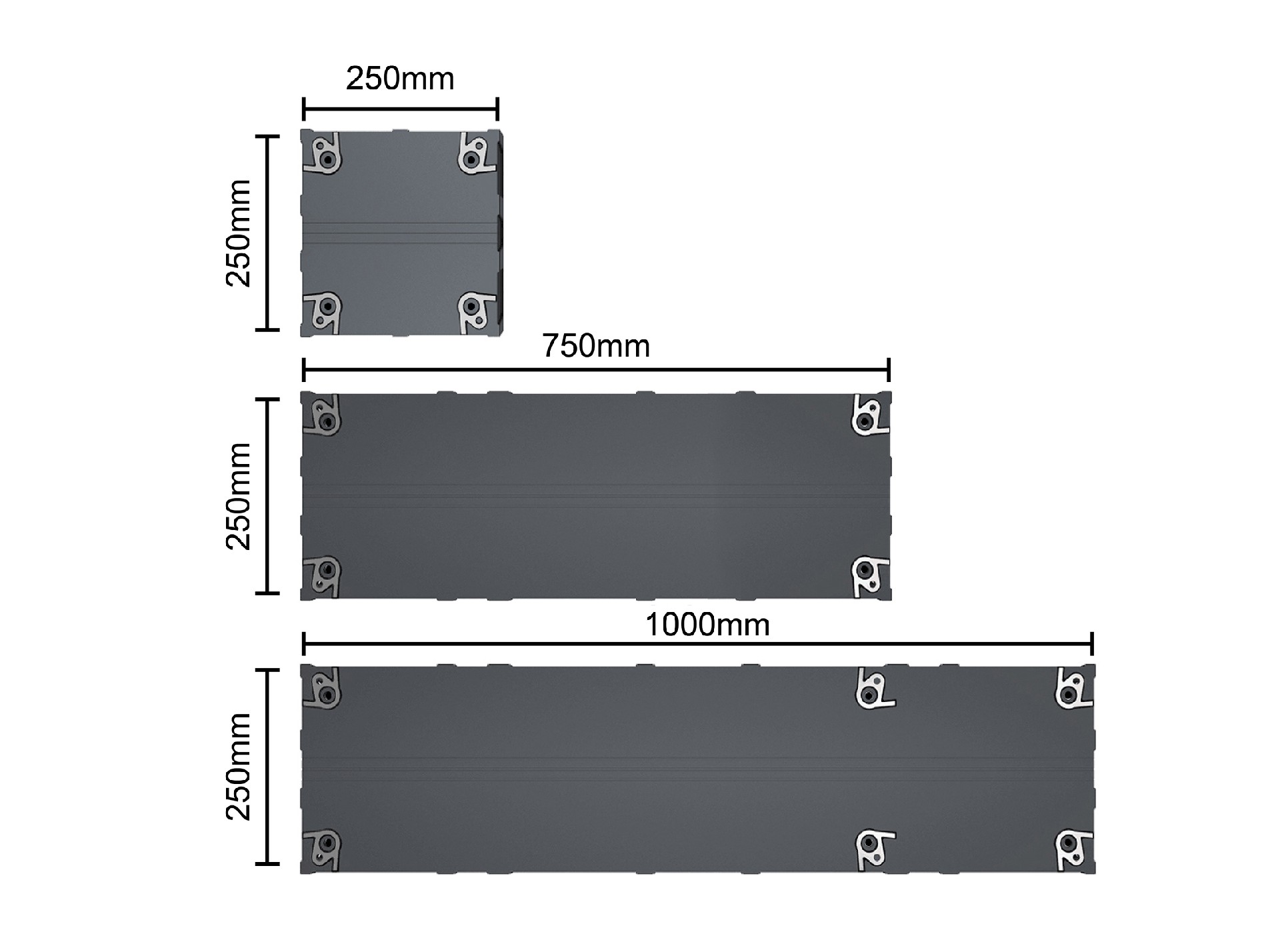

250x250 einzigartiges abgeschrägtes Kabinett, frei, um einen größeren Bildschirm und eine starke Ausdehnbarkeit zu bauen.
Item | P1.56 | P1.95 | P2.5 | P2.6 | P2.97 | P3.91 |
Pixel Pitch | 1.5625mm | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.906mm |
LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
Module Resolution | 160dots x 160dots | 128dots x 128dots | 100dots x 100dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
Driving Mode | 1/40scan | 1/32scan | 1/25scan | 1/32scan | 1/28scan | 1/16scan |
Module Pixels | 25,600dots | 16,384dots | 10,000dots | 9,216dots | 7,056dots | 4,096dots |
Module Size | 250mm x 250mm | |||||
Cabinet Size | 1000mm x 250mm or 750mm x 250mm or 250mm x 250mm | |||||
Cabinet Resolution (1000mm x 250mm) | 640dots x 160dots | 512dots x 128dots | 400dots x 100dots | 384dots x 96dots | 336dots x 84dots | 256 x 64dots |
Pixel Density | 409,600dots/㎡ | 262,144dots/㎡ | 160,000dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ |
Best Viewing Distance | ≥1.5m | ≥1.9m | ≥2.6 m | ≥2.6 m | ≥2.9 m | ≥3.9 m |
Brightness | 500nits | 800nits | 1200nits | 800nits | 800nits | 800nits |
IP Grade | IP43 | |||||
Refresh Rate | 1,920Hz~3,840Hz(depends on IC driver solution) | |||||
Gray Scale | 14bits~22bits(depends on IC driver and controller solution ) | |||||
Viewing Angle | H:110° / V:110° | |||||
Maximum Power Consumption | 500W/ ㎡ | 500W/ ㎡ | 500W/ ㎡ | 450W/ ㎡ | 350W/ ㎡ | 300W/ ㎡ |
Average Power Consumption | 160W/ ㎡ | 150W/ ㎡ | 115W/ ㎡ | 100W/ ㎡ | ||
Screen Lifespan | /100,000 hours | |||||
Input Voltage | AC110V - AC220V @ 50Hz/60Hz | |||||
Operating Temperature | ﹣20℃~50℃ | |||||
Operating Humidity | 10%~90% | |||||
Cabinet Material | Die-casting Aluminum | |||||

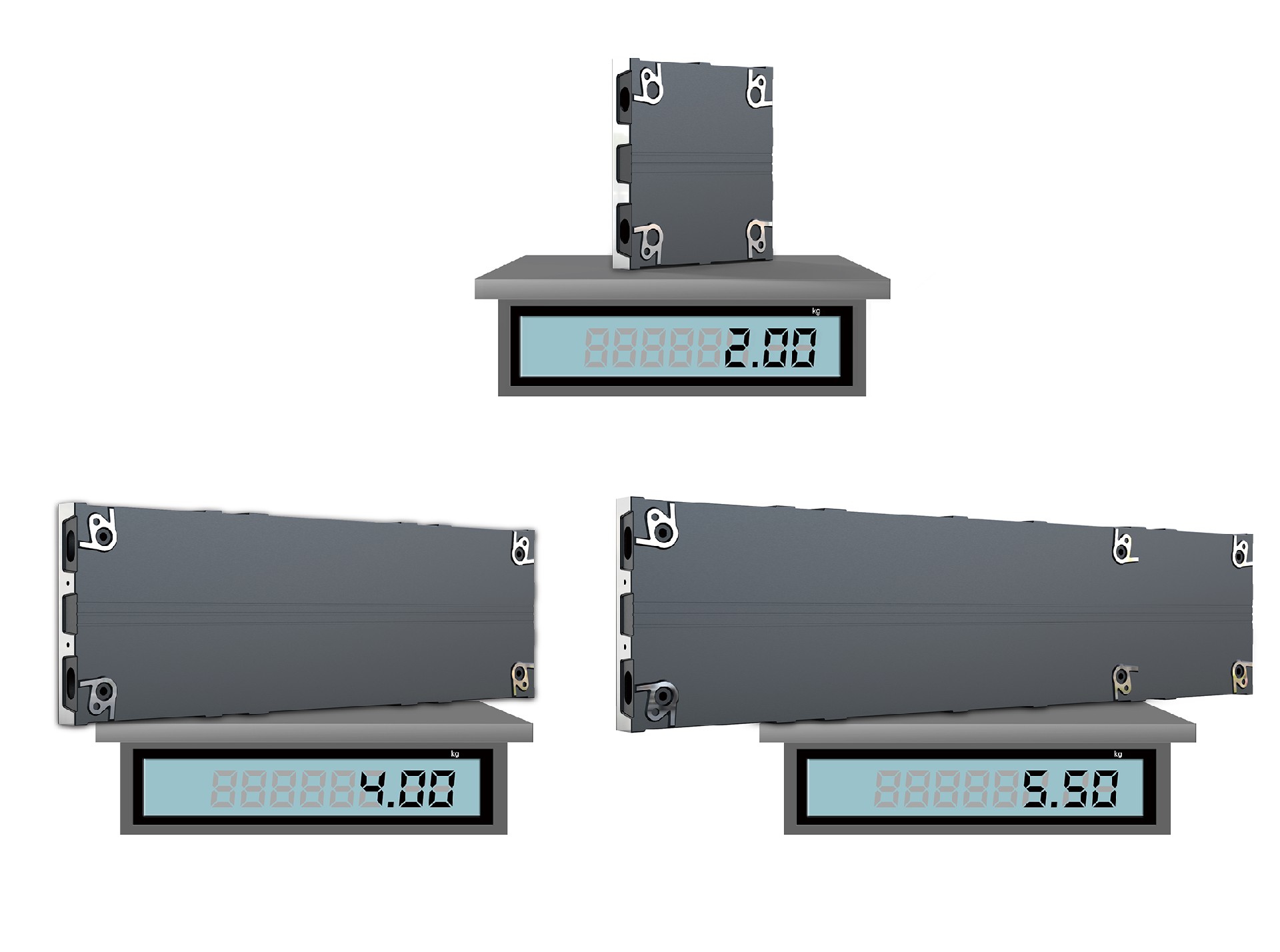

Cabinet Weight | 5.5kg/panel | 5.3kg/panel | 5.2kg/panel | |||
Operating System | Windows (Win7, Win10, etc.) | |||||
Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
Vielen Dank für Ihre Aufmerksamkeit und Unterstützung für Leder. Wir werden euch eifrig dienen. Sie sind herzlich eingeladen, uns Ihre wertvollen Bedürfnisse und Vorschläge zu hinterlassen, und wir werden so schnell wie möglich antworten.
