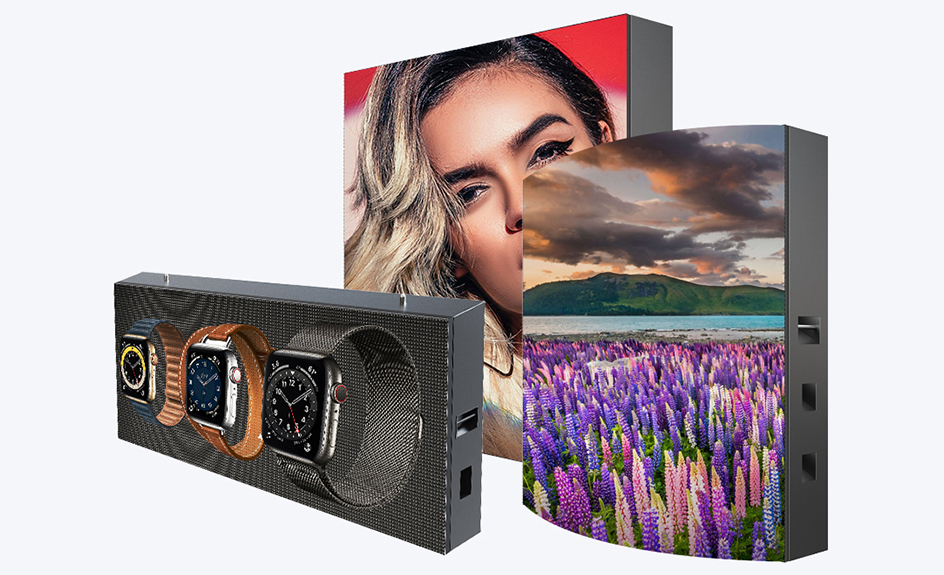

Universal sheet metal box, strong plastic, can be freely customized, free selection of configuration, low maintenance cost, convenient installation, high environmental compatibility, strong cost performance
HDR dynamische Anzeige, hohe Graustufen, hohe Helligkeit, klare und scharfe Bildanzeige.

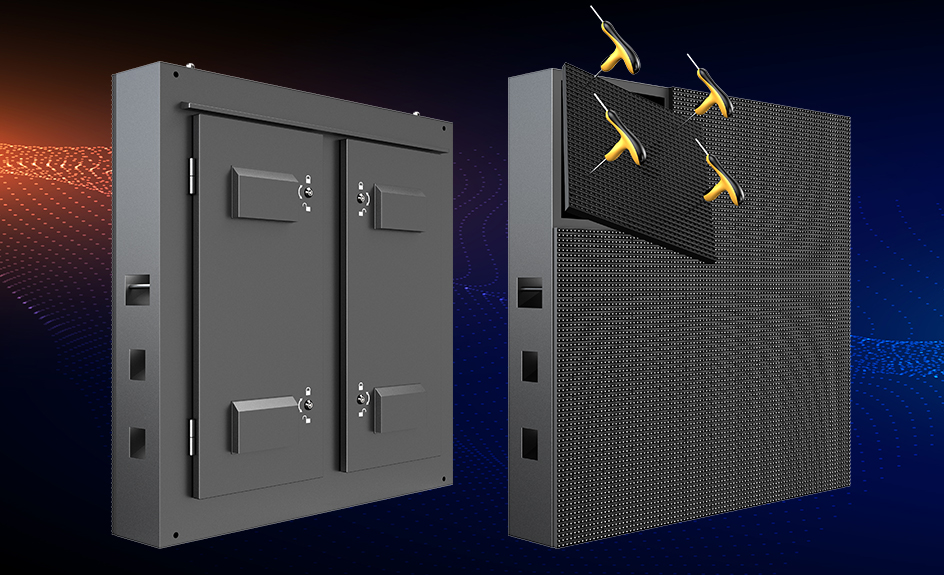

According to different project requirements, it supports custom box maintenance methods, and all components can be maintained before and after.

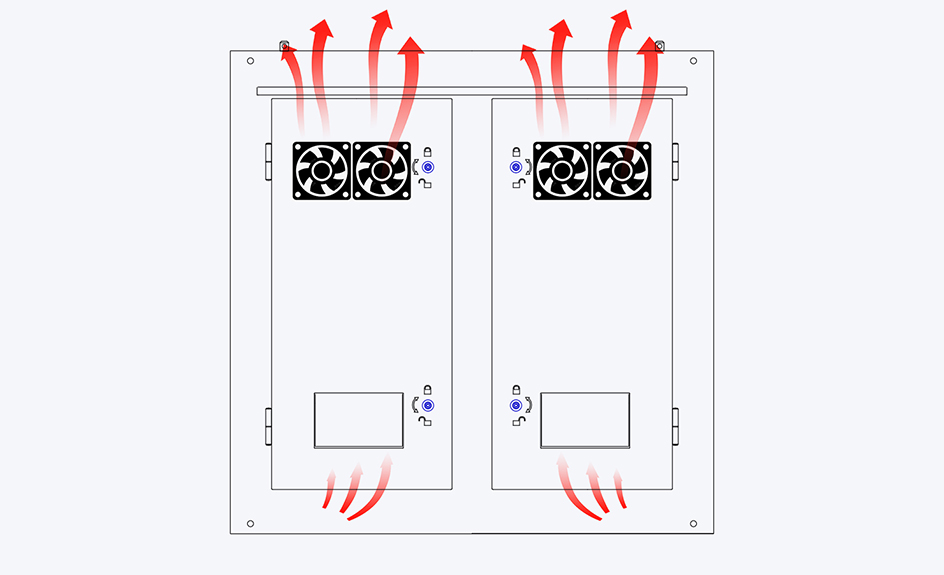

Leistungsstarke Leistung von Mehrkanalventilatoren, schnelle Luftaustauschgeschwindigkeit im Inneren der Box, schnelle Kühlgeschwindigkeit

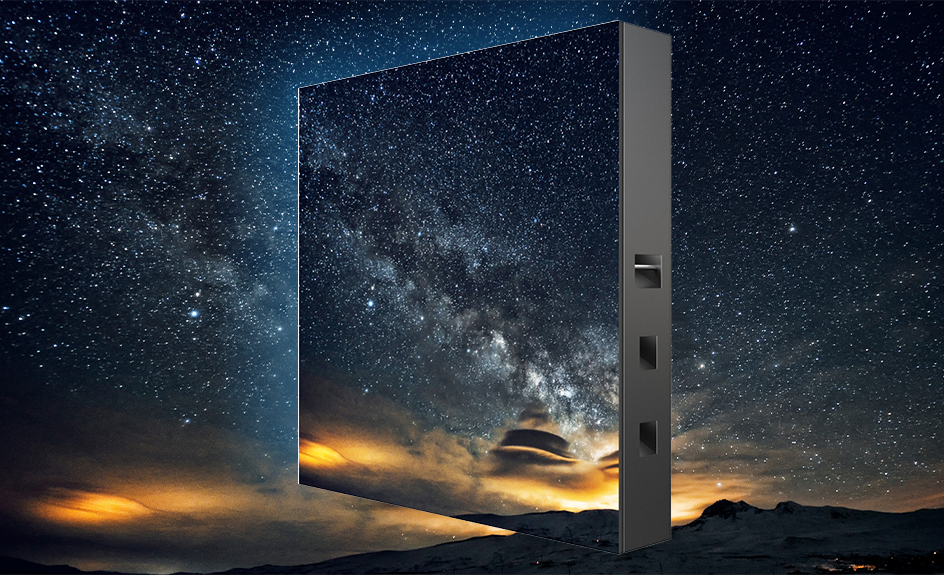

Ultra-wide viewing angle in H/V direction, the picture is clear and stable, no color cast, no deformation

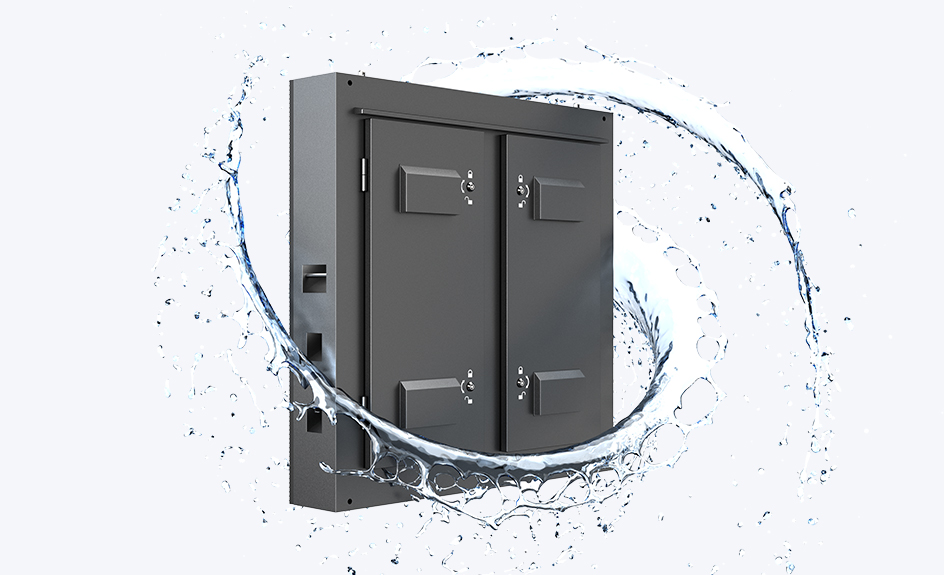

Schutzart IP65, Kantenschutz gegen Rückfluss durch den Kabelanschluss, Isolierung von Wasserdampfkorrosion, hoher Abdichtungsgrad von Modulen und Hecktüren, staubdicht, wasserdicht und korrosionsbeständig.

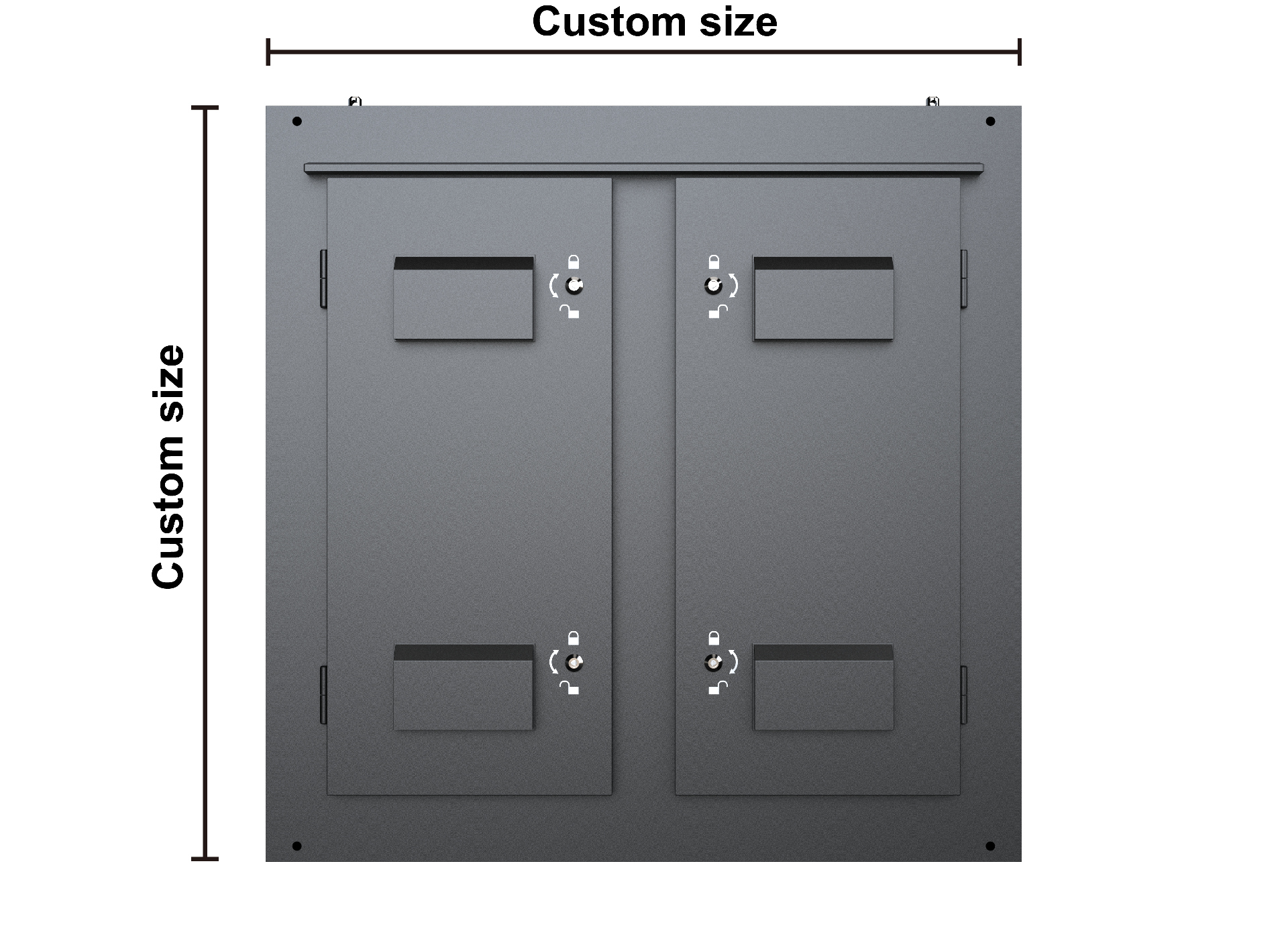

Der Blechformkasten hat eine starke Plastizität und unterstützt die Anpassung verschiedener unkonventioneller Größenkästen.

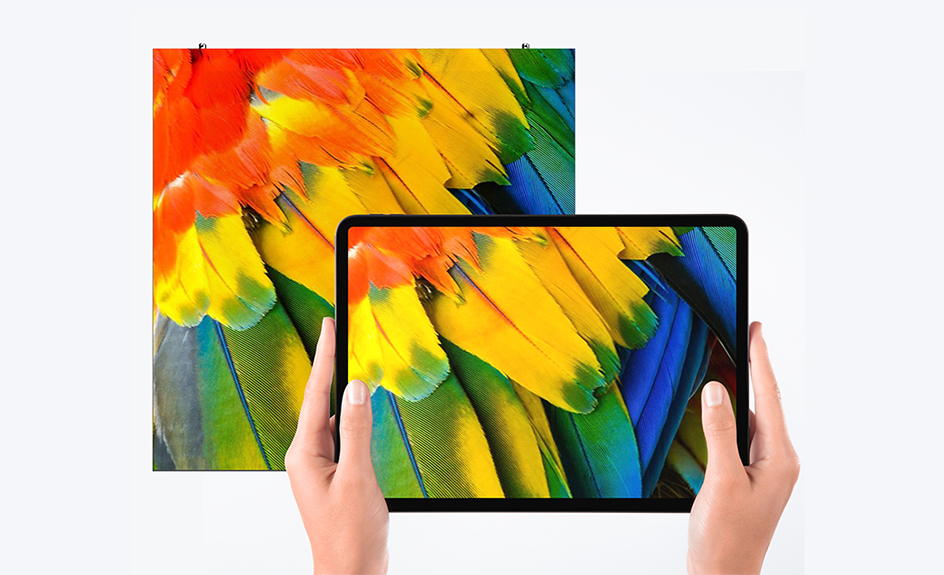

Hohe Bildwiederholrate, bis 3840Hz, hohe Helligkeit, schnelle Bildschirmantwort, keine flackernde Bildschirmanzeige unter Kamera und Videoaufnahme, glatte und stabile Bildschirmanzeige.
Item | P3.91 | P4.81 | P5 | P6.15 | P6.67 | P8 | P10 | P10 | P16 | P20 |
Pixel Pitch (mm) | P3.906 | 4.807 | 5 | 6.154 | 6.667 | 8 | 10 | 10 | 16 | 20 |
LED Type | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 | DIP346 |
Module Resolution (dots) | 64 × 64 | 52 × 52 | 64× 32 | 52 × 26 | 48 × 24 | 40 × 40 | 32 × 32 | 32 ×16 | 20 ×10 | 16 × 8 |
Driving Mode (scan) | 1/16 or 1/8 | 1/7 | 1/8 | 1/7 | 1/6 | 1/4 | 1/2 | 1/4 | static | static |
Module Pixels (dots) | 4,096 | 2,704 | 2,048 | 1,352 | 1,152 | 1,600 | 1,024 | 512 | 200 | 128 |
Module Size (mm) | 250 × 250 | 320 × 160 | 320 × 320 | 320 × 160 | ||||||
Cabinet Size (mm) | 1,000 × 1,000 | 960 × 960 | ||||||||
Cabinet Resolution (dots) | 256 × 256 | 208 × 208 | 192 ×192 | 156 × 156 | 144 × 144 | 120 × 120 | 96 × 96 | 96 × 96 | 60 × 60 | 48 × 48 |
Pixel Density (dots/㎡) | 65,536 | 43,264 | 40,000 | 26,406.25 | 22,500 | 15,625 | 10,000 | 10,000 | 3,906 | 2,500d |
Best Viewing Distance | ≥3.9m | ≥4.8m | ≥5m | ≥6m | ≥6.67m | ≥8m | ≥10m | ≥10m | ≥16m | ≥20m |
Brightness(nits) | 5,000 or 6,500 | 6500 | 6000 | 6000 | 6000 | 6000 | 6000 | 7000 | 7000 | 6000 |
IP Grade | IP65 | |||||||||
Refresh Rate | 1,920Hz~3,840Hz(depends on IC driver solution) | |||||||||
Gray Scale | 14bits~22bits(depends on IC driver and controller solution ) | |||||||||
Viewing Angle | H:110° / V:110° | H:110° / V:55° | H:110° / V:55° | H:110° / V:55° | ||||||
Maximum Power Consumption (W/㎡) | 750 or 1000 | 1000 | 750 | 750 | 680 | 800 | 800 | 530 | 500 | 500 |
Average Power Consumption(W/㎡) | 250 or 330 | 330 | 250 | 250 | 220 | 260 | 260 | 170 | 160 | 160 |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | |||||||||
Operating Temperature | ﹣20℃~50℃ | |||||||||
Operating Humidity | 10%~90% | |||||||||
Cabinet Material | Iron / Aluminum | |||||||||
Cabinet Weight (kg/㎡) | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 65 or 55 | 65 or 55 | 65 or 55 |
Operating System | Windows (Win7, Win10, etc.) | |||||||||
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
