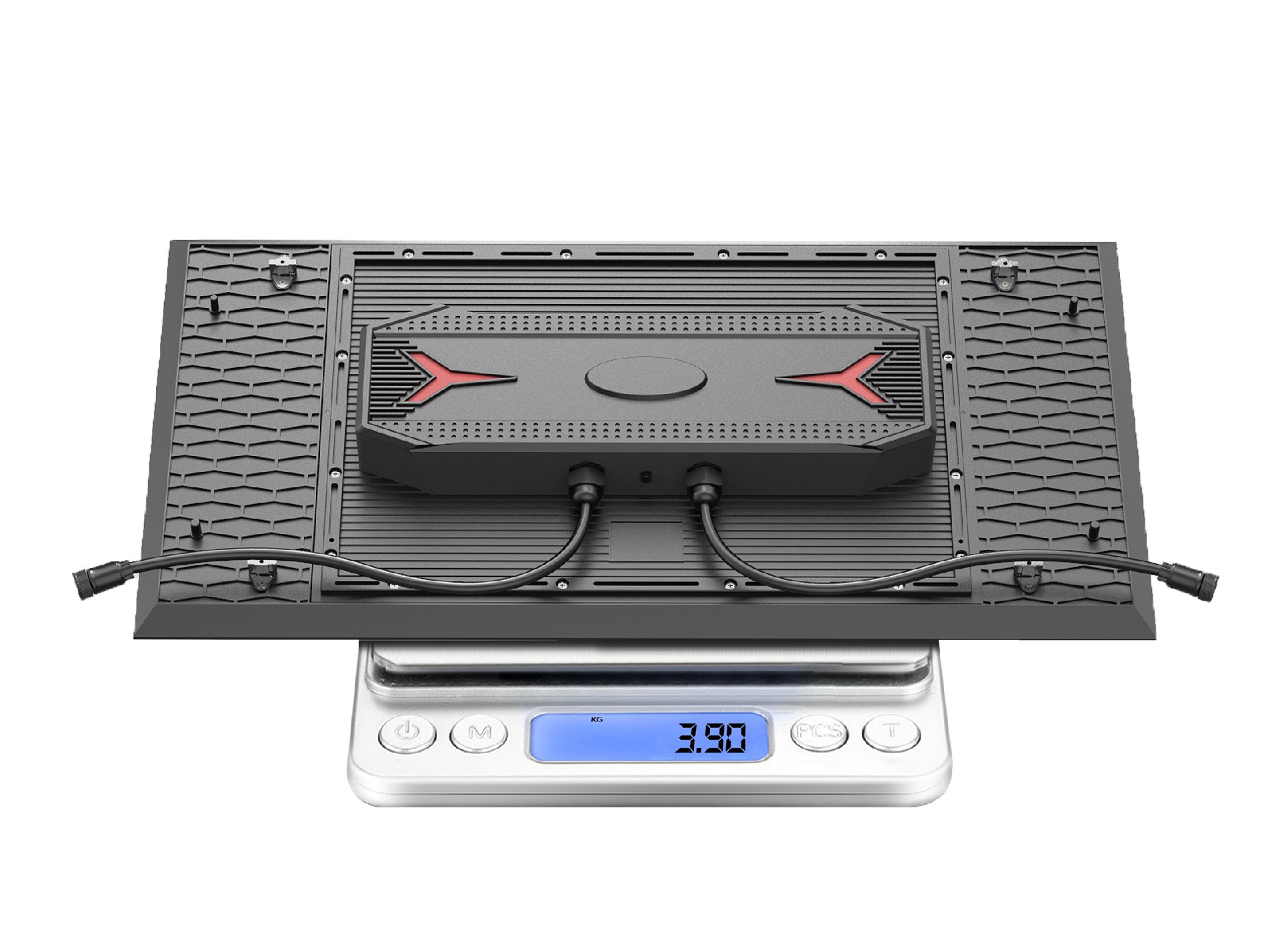

LFA outdoor display, small-size and lightweight modular cabinet. Integrated with power supply, receiving card. IP67 protection,high brightness, high refresh rate, low failure rate, high efficiency and energy saving, good display effect, stable operation in all weather outdoor applications.
Quick removable from front or back,easy for maintenance.
Cabinet,control box and installation frame are unified modular design.Easy and flexible assemble, excellent screen creativity.

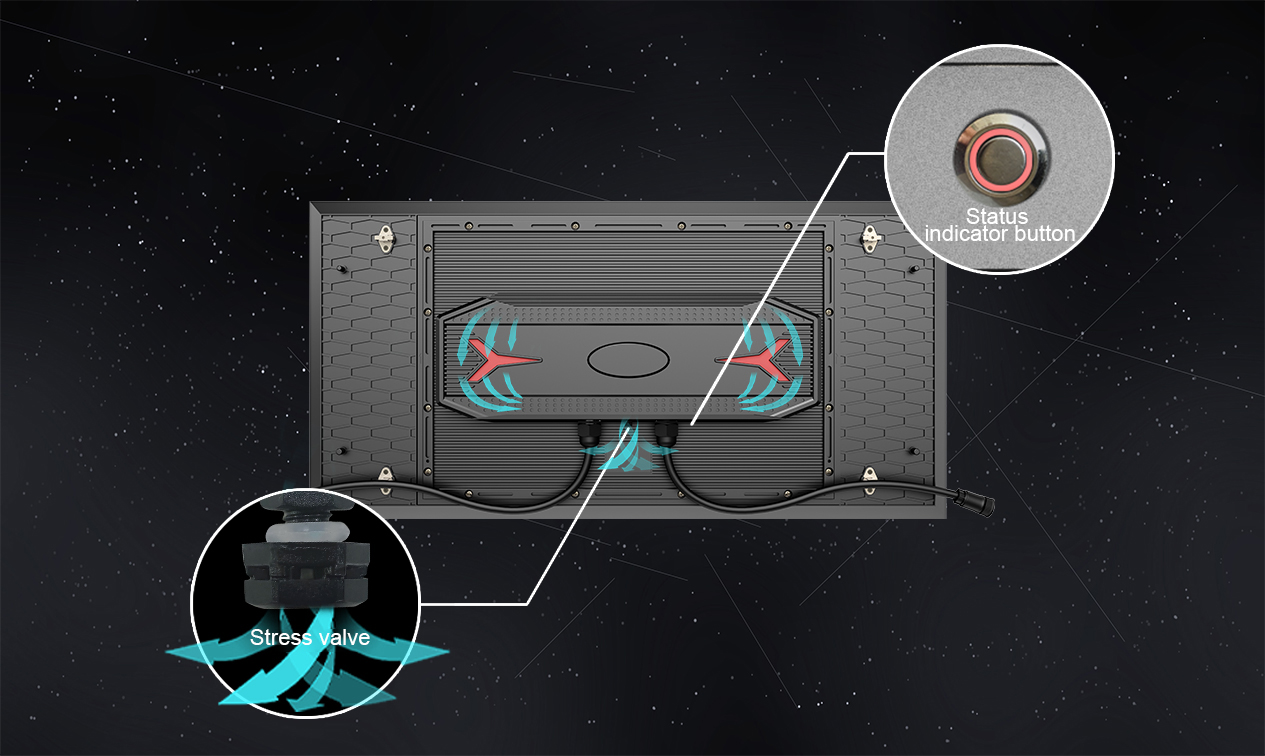

Luftventilentwurf, um den Luftdruck im Schrank auszugleichen. Taste zur Anzeige des Arbeitsstatus, um den Arbeitsstatus der Box jederzeit zu überwachen.

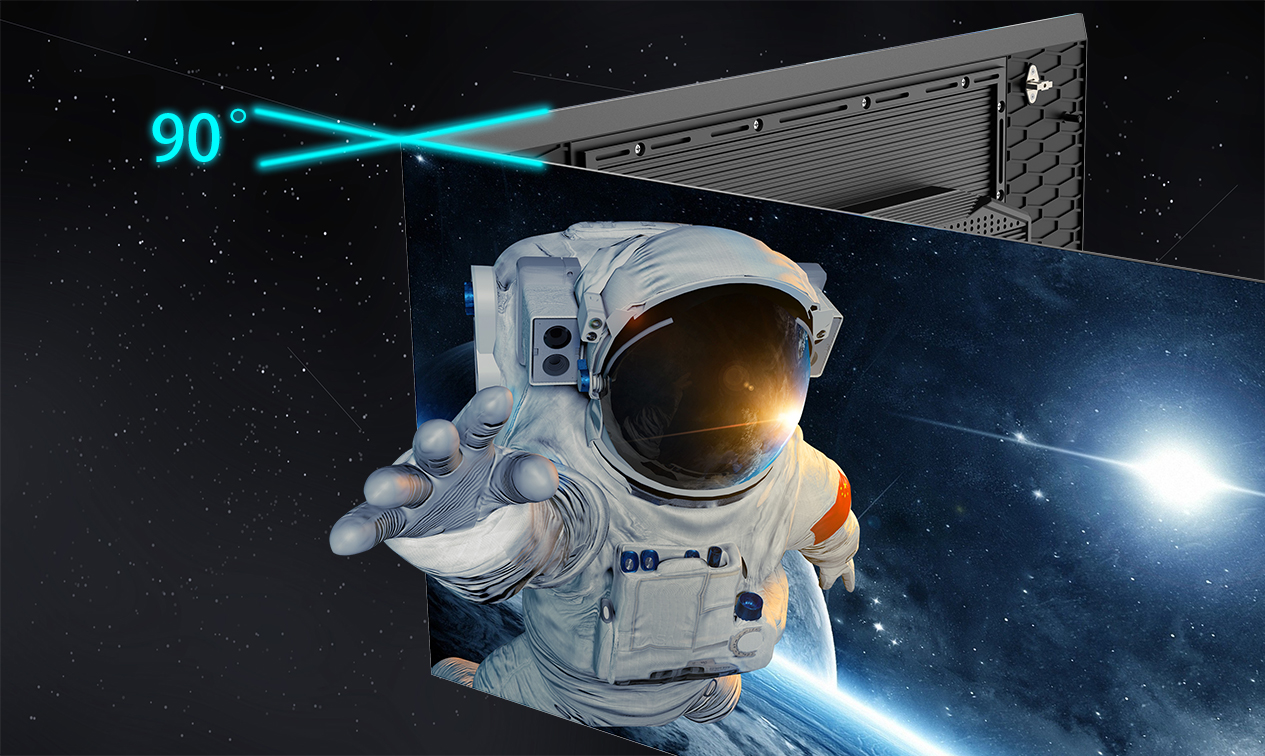

45° chamfered angle design of the cabinet edge, support all kinds of large corner projects,3D screen, square screen, curved creen etc.

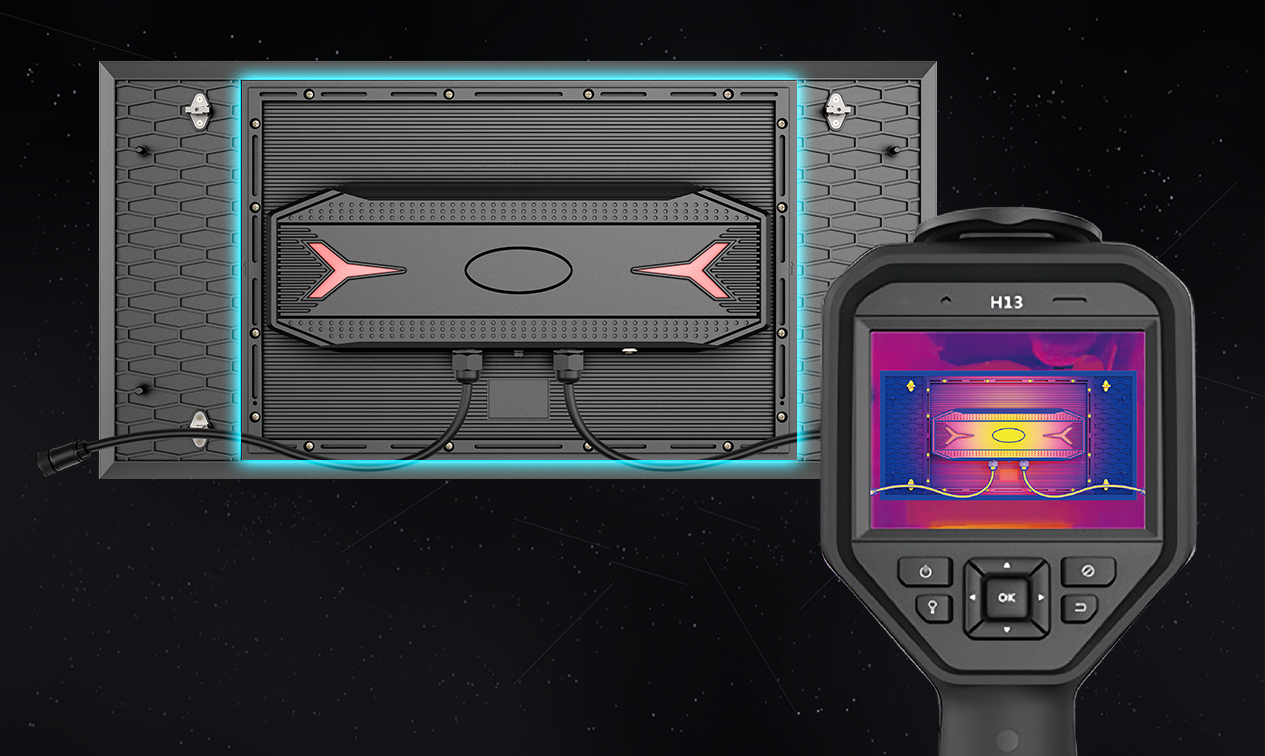

Large area of die-casting alloy on the back of cabinet uniform heat distribution,and expedite heat dissipation,working is more stable.

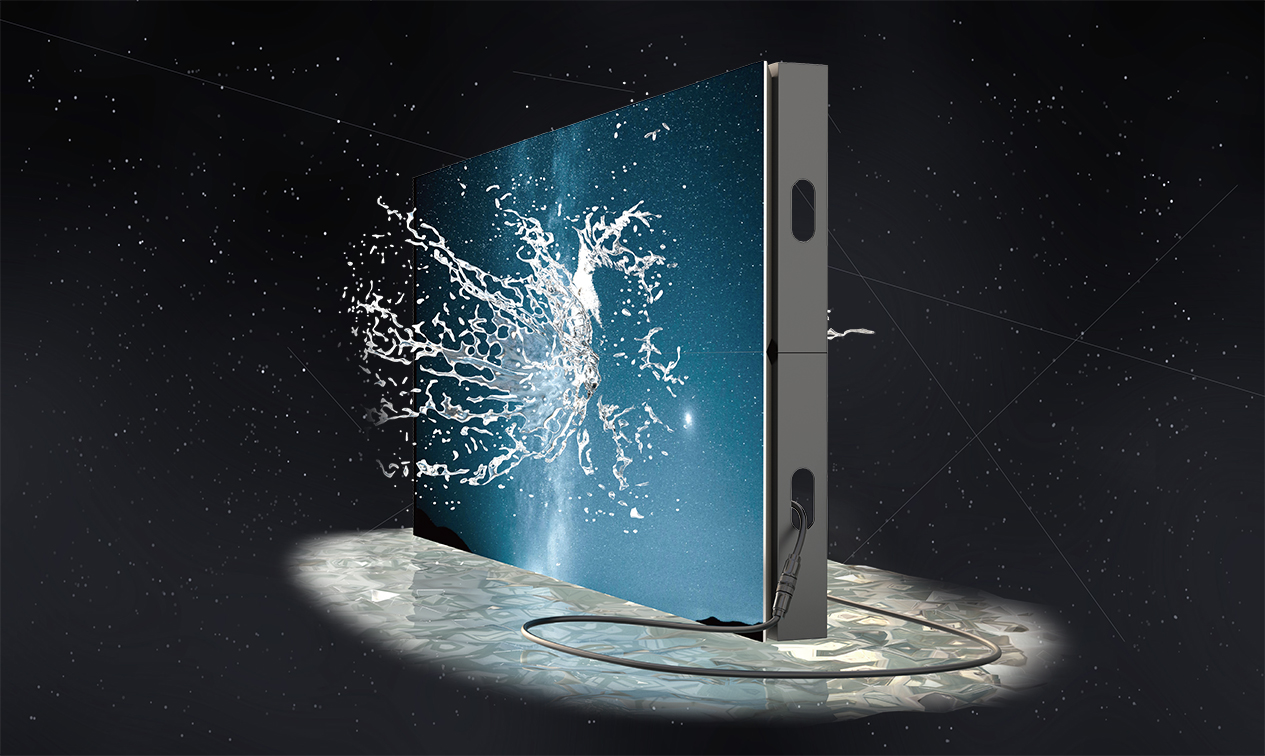

P67-Design, passend für verschiedene Arbeitsumgebungen: staubige Straßenseite, nasse Küste etc., ideales Produkt im Freien.
| Item | P4.76 | P6.35 | P9.52 |
| Pixel Pitch | 4.7625mm | 6.35mm | 9.525mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Module Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Driving Mode | 1/8scan | 1/6scan | 1/2scan |
| Module Pixels | 8192dots | 4608dots | 2048dots |
| Module Size | 2ft * 1ft | ||
| Cabinet Size | 2ft * 1ft | ||
| Cabinet Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Pixel Density | 44,088dots/m² | 24,800dots/m² | 11,022dots/m² |
| Best Viewing Distance | ≥4.7 m | ≥6.3 m | ≥9.5 m |
| Brightness | 6,000nits | 6,000nits / 9,000nits | 6,000nits / 10,000nits |
| IP Grade | IP67 | ||
| Refresh Rate | 3,840Hz | ||
| Gray Scale | 16bits～22bits (depends on IC driver and controller solution ) | ||
| Viewing Angle | H:120° / V:120° | ||
| Maximum Power Consumption | 750W/m² | 600W/m² | 600W/m² |
| Average Power Consumption | 215W/m² | 180W/m² | 180W/m² |
| Input Voltage | AC110V - AC220V @ 50Hz/60Hz | ||
| Operating Temperature | ﹣20℃～50℃ | ||
| Operating Humidity | 10%～90% | ||
| Cabinet Material | die-casting Aluminum | ||
| Cabinet Weight | 3.9kg | 3.9kg | 3.8kg |
| Operating System | Windows (Win7, Win10 etc.) | ||
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | ||
